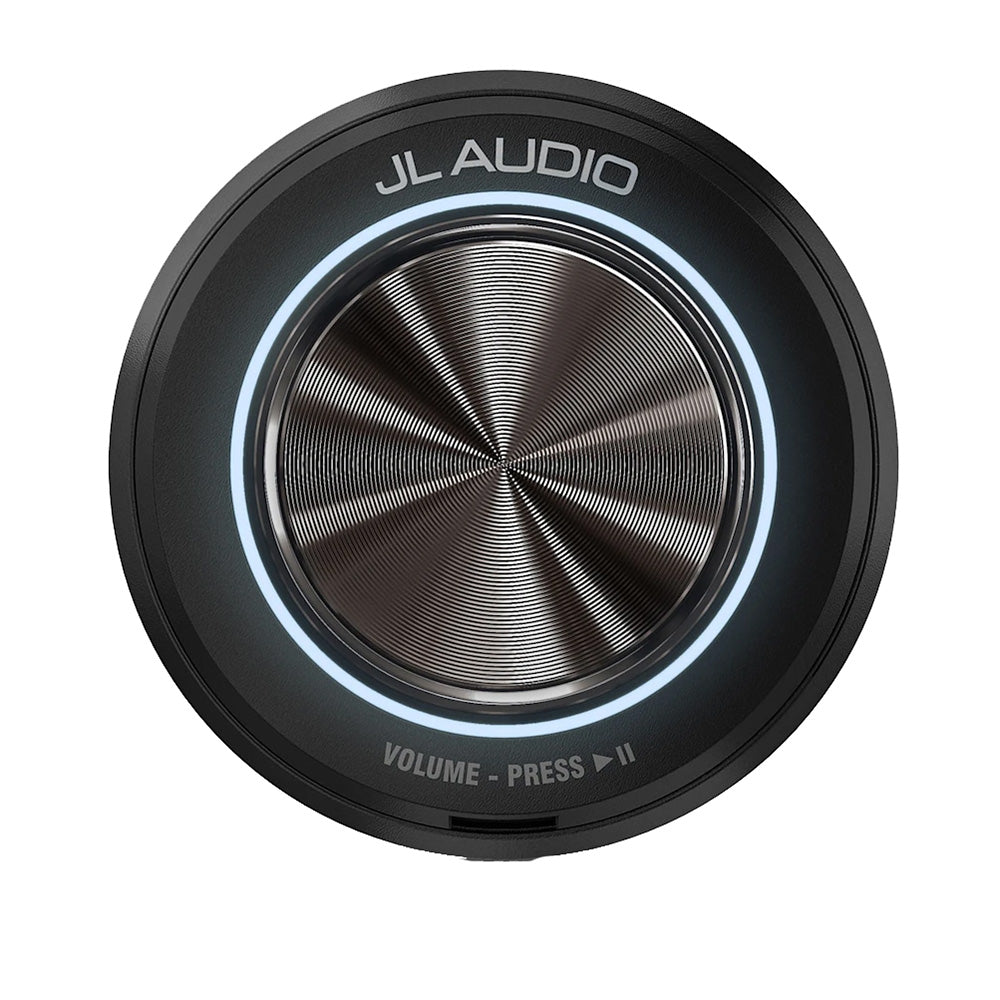

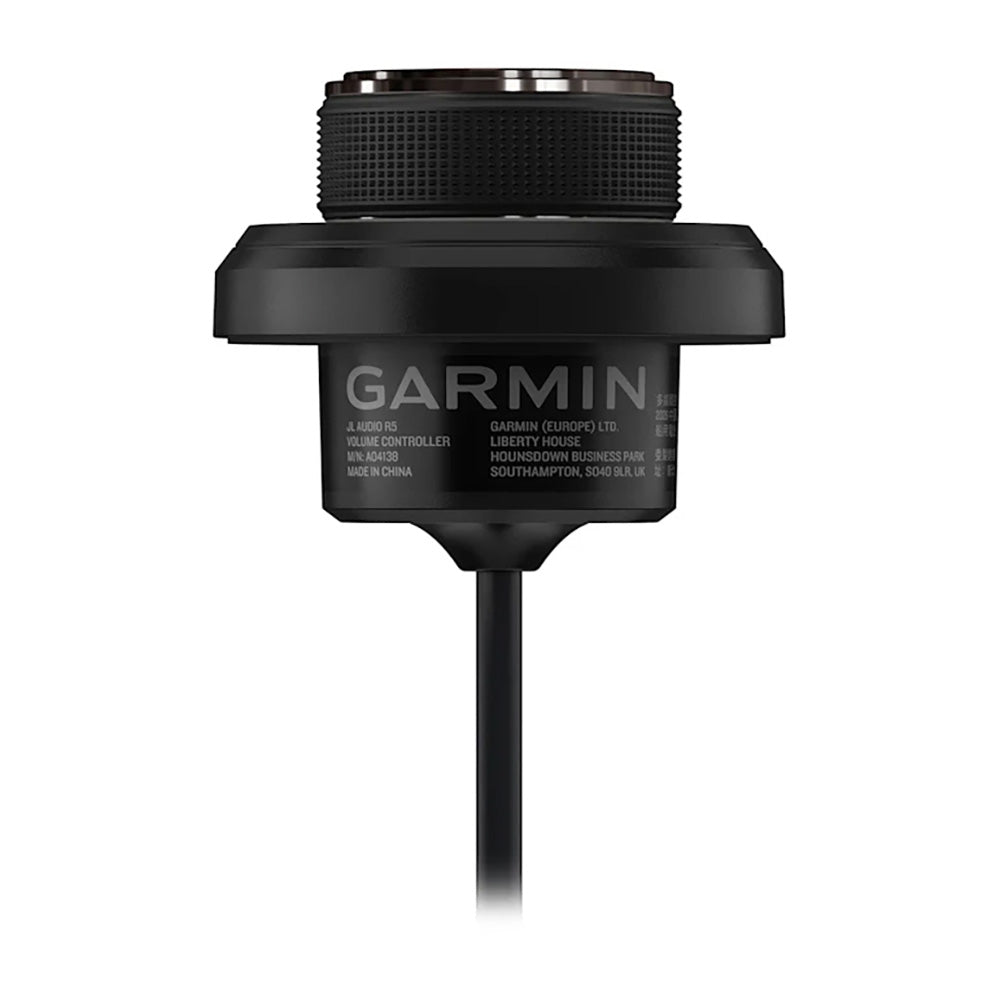

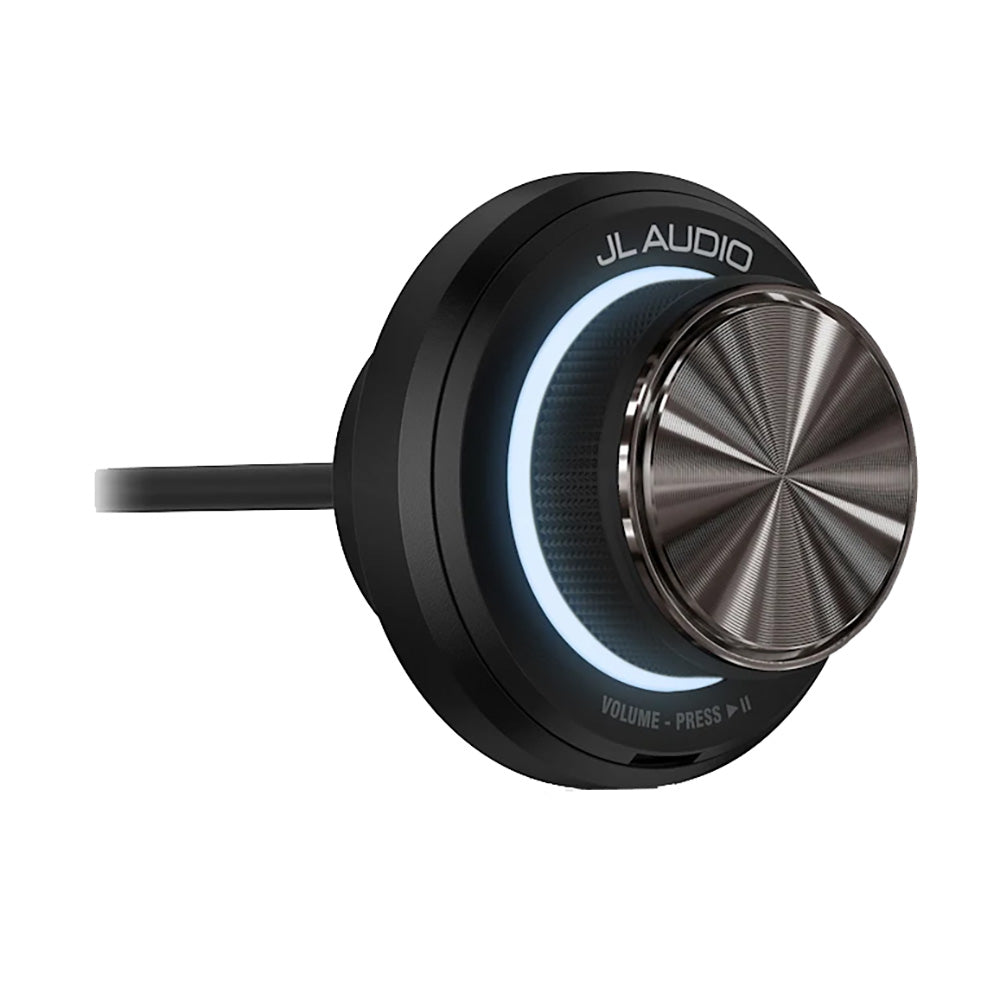

JL Audio R5 Single Stereo Volume Controller [010-04790-00]

R5 Single Stereo Volume Controller

This easy-to-use volume controller can be front-mounted on your boat’s dash, and it controls all audio zones of a single head unit via a large single knob.

Features:

• LARGE SINGLE-KNOB CONTROL
• CONNECTS TO YOUR BOAT’S NMEA 2000® NETWORK
• ADJUSTS ALL AUDIO ZONES OF A SINGLE HEAD UNIT
• PLAY OR PAUSE WITH THE PUSH OF A BUTTON
• REQUIRES A SINGLE 1.5-INCH HOLE FOR INSTALLATION
• IPX7-RATED FOR MARINE ENVIRONMENTS

General:

• Warranty: 1 year
• Physical dimensions (Height): 2.35" (60 mm)
• Physical dimensions (Width): 2.35" (60 mm)
• Physical dimensions (Depth): 2.04" (52 mm)
• Control surface dust/water rating (when properly installed): IPX7
• Operating temperature range: 32° F to 122° F (0° C to 50° C)
• Current draw (max): 110 mA
• Power Input: 10.8-16 VDC
• Compass-safe distance: 3.94" (100 mm)

Networking & Connections:

• NMEA 2000® ports: 1 (Micro-C connector)
• NMEA 2000® LEN: 2 (100 mA)

In The Box:

• JL Audio R5 single stereo volume controller
• T-connector for the NMEA 2000® network
• Two screws
• Documentation

*Not compatible with JL Audio MediaMaster® Source Units
